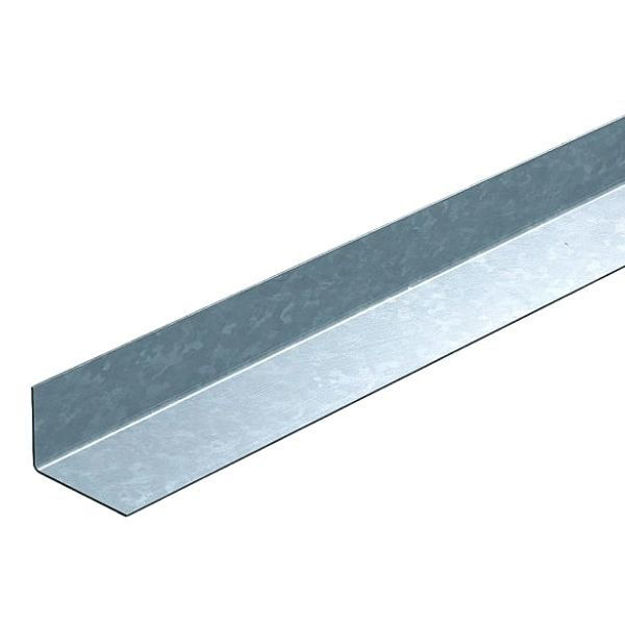

Birtley MBL Light Duty External Wall Lintel. 750mm Single leaf meter box lintel for light duty applications 100mm external walls.
Features:
-Supergalv coating offers superior life expectancy
-Post-fabrication galvanizing leaves no surface with inferior paint protection
-Lack of baseplate and factory fitted insulation reduces thermal bridging
Installation requirements
1. Bed fully on bricklaying mortar
2. Must be used with a cavity tray - External walls only
3. Lintels over 1500mm must be propped until masonry is fully loaded and cured
Brand: Birtley
Generic Ref: MBL
Product Range: Single Leaf External Walls
Cavity Product Type: Light Duty Meter Box Lintel - 100mm Brick
European Standard/ETA: BS EN845-2:2013+A1:2016
Test Standard: EN846-9:2000/2016
Material: Mild Steel S275JR to BS EN10025-2:2004
Coating/Finish/Colour: 65µm Hot Dip Galvanized to BS EN ISO 1461:2009
Fire Rating: 60 mins (with 2 coat plaster finish)
Products specifications
| Attribute name |
Attribute value |
|
Range
|
Single Leaf External Walls |
