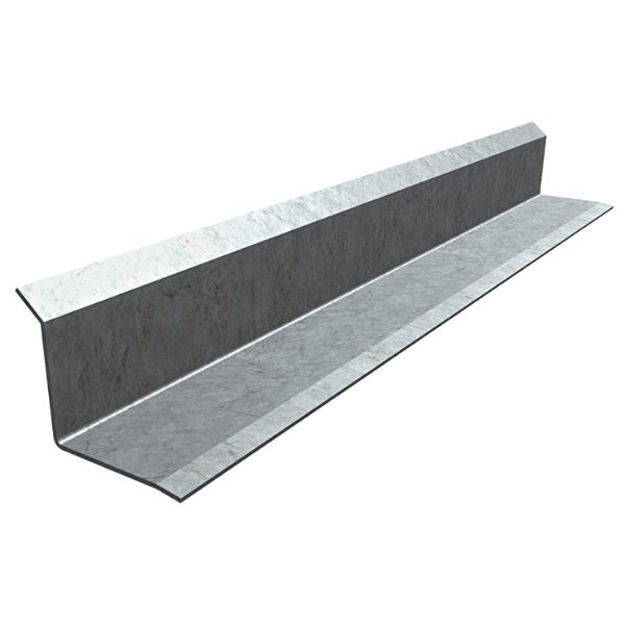

Supergalv LA Lintel is a standard duty single leaf external wall lintel designed to be used as a structural horizontal support. It is placed within an opening in a wall such as a door or window between two vertical supports to act as a load bearing structure. The supergalv coating provides a longer and more enhanced life expectancy.
Features
-Hot-dip galvanize after fabrication providing up to 50% more zinc protection than other approved coatings
-Supergalv coating offers superior life expectancy
-Post-fabrication galvanizing leaves no surface with inferior paint protection
Installation requirements:
1. Bed fully on bricklaying mortar
2. Must be used with a cavity tray - External walls only
3. Lintels over 1500mm must be propped until masonry is fully loaded and cured.
Brand: Birtley
Generic Ref: LA
Product Range: External Walls
Product Type: Standard Duty - External Wall Lintel
European Standard/ETA: BS EN845-2:2013+A1:2016
Test Standard: EN846-9:2000/2016
Material: Mild Steel S275JR to BS EN10025-2:2004
Coating/Finish/Colour: 65µm Hot Dip Galvanized to BS EN ISO 1461:2009
Fire Rating: 60 mins (with 2 coat plaster finish)
Products specifications
| Attribute name |
Attribute value |
|
Range
|
Single Leaf External Walls |
