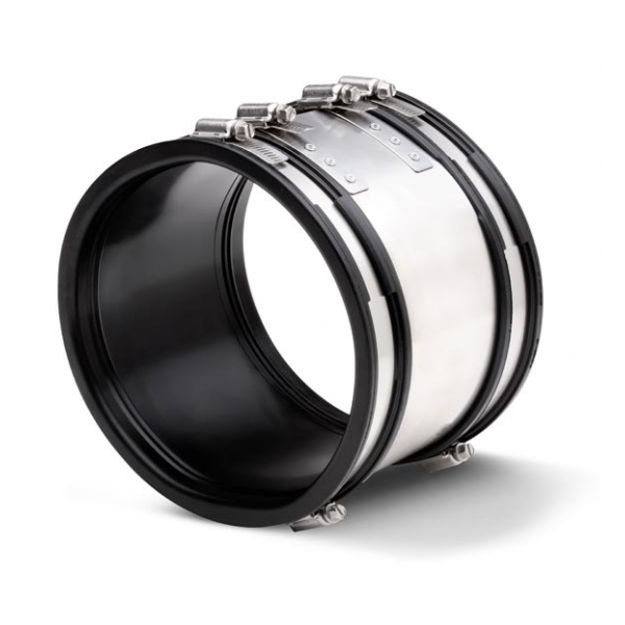

Standard Coupling MSC is an ideal solution for the external connection of all pipe systems with different or same outside diameters. Suitable for applications above and below ground as well as inside and outside of buildings. It can connect all plain ended pipes within same or different dimensions and is compensating differences in outside diameters of max. 12 mm. Differences in outside diameters of more than 12 mm will require the use of bushes.
• For all pipe materials
• For above and below ground
• For usage with bushes
• Resistant to 2.5 bar
Manufacturer:MISSION RUBBER (UK
Pressure Tightness:2.5 bar wasser / -0.3 bar vacuum
Jetting Resistance:120 bar
Corrosion Resistance:TOX-Technology
Sealing Material:EPDM or Nitrile (NBR) rubber with lock in place profile according to BS EN 681-1
Stainless Steel:AISI 304/1.4301, alternatively AISI 316/1.4404 according to BS EN 10088-2
Temperature Resistance:-40°C to +120°C, temporary max. temperature +160°C
Standard/Approval:BS EN 16397-2, CE16
