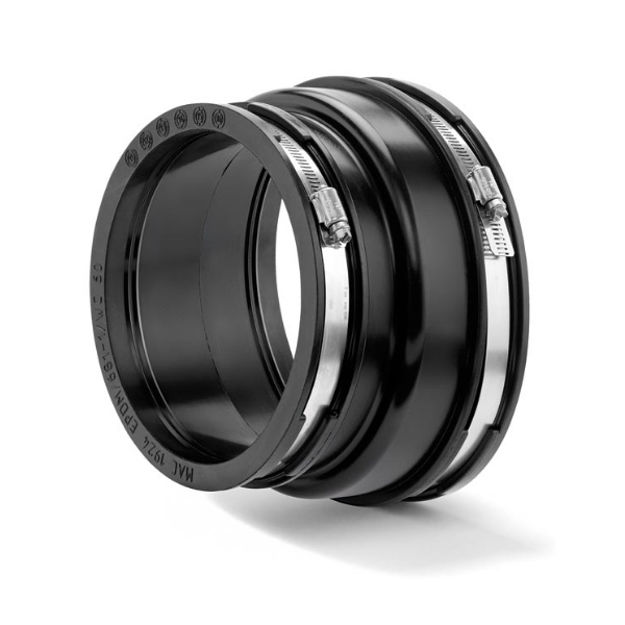

Picture of 4"" CLAY TO 4"" PLASTIC BANDSEAL COUPLING

4"" CLAY TO 4"" PLASTIC BANDSEAL COUPLING

Be the first to review this product

Adaptor Coupling MAC is ideal for the external connection of all pipe systems
with different outside diameters. It connects all plain ended pipes with different
outside diameters and materials. It can be used for applications above and below ground as well as inside and outside of buildings. When changing nominal diameters, the flow direction needs consideration.

• Adaptor for different outside diameters
• For above and below ground
• External compression seal
• Resistant to 0.6 bar

Manufacturer:MISSION RUBBER
Pressure Tightness:0.6 bar wasser / -0.3 bar vacuum
Jetting Resistance:120 bar
Sealing Material:EPDM rubber with lock in place profile according to BS EN 681-1
Stainless Steel:AISI 304/1.4301, alternatively AISI 316/1.4404 according to BS EN 10088-2
Temperature Resistance:-40°C to +120°C, temporary max. temperature +160°C
Standard/Approval:BS EN 16397-2, CE16

SKU: PB01010

Availability:

Out of stock

Overview
Contact Us

Adaptor Coupling MAC is ideal for the external connection of all pipe systems
with different outside diameters. It connects all plain ended pipes with different
outside diameters and materials. It can be used for applications above and below ground as well as inside and outside of buildings. When changing nominal diameters, the flow direction needs consideration.

• Adaptor for different outside diameters
• For above and below ground
• External compression seal
• Resistant to 0.6 bar

Manufacturer:MISSION RUBBER
Pressure Tightness:0.6 bar wasser / -0.3 bar vacuum
Jetting Resistance:120 bar
Sealing Material:EPDM rubber with lock in place profile according to BS EN 681-1
Stainless Steel:AISI 304/1.4301, alternatively AISI 316/1.4404 according to BS EN 10088-2
Temperature Resistance:-40°C to +120°C, temporary max. temperature +160°C
Standard/Approval:BS EN 16397-2, CE16
